AerPID Dual

Description

AerPID Dual Temperature Controller

AerTiny High-Power edition.

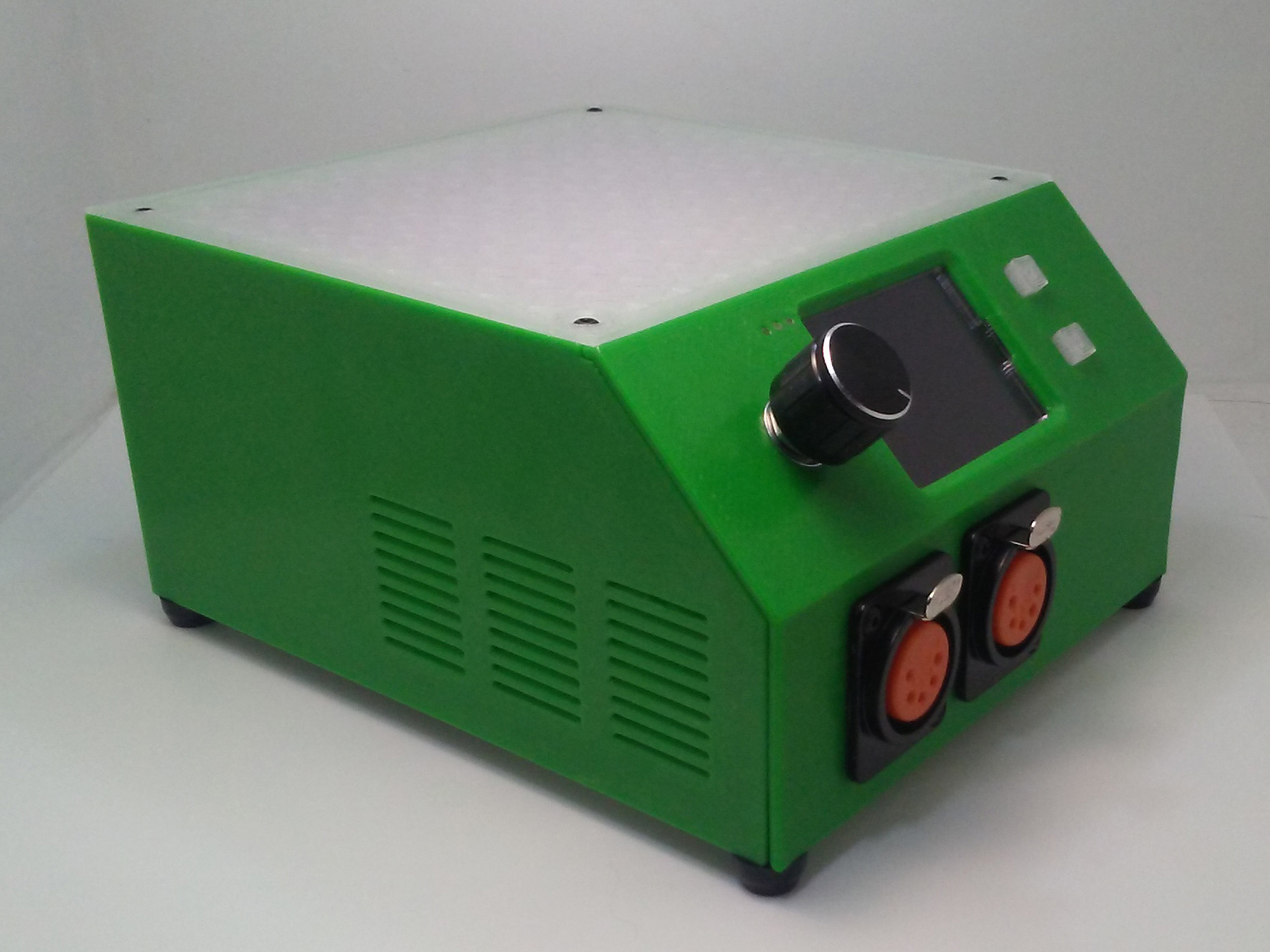

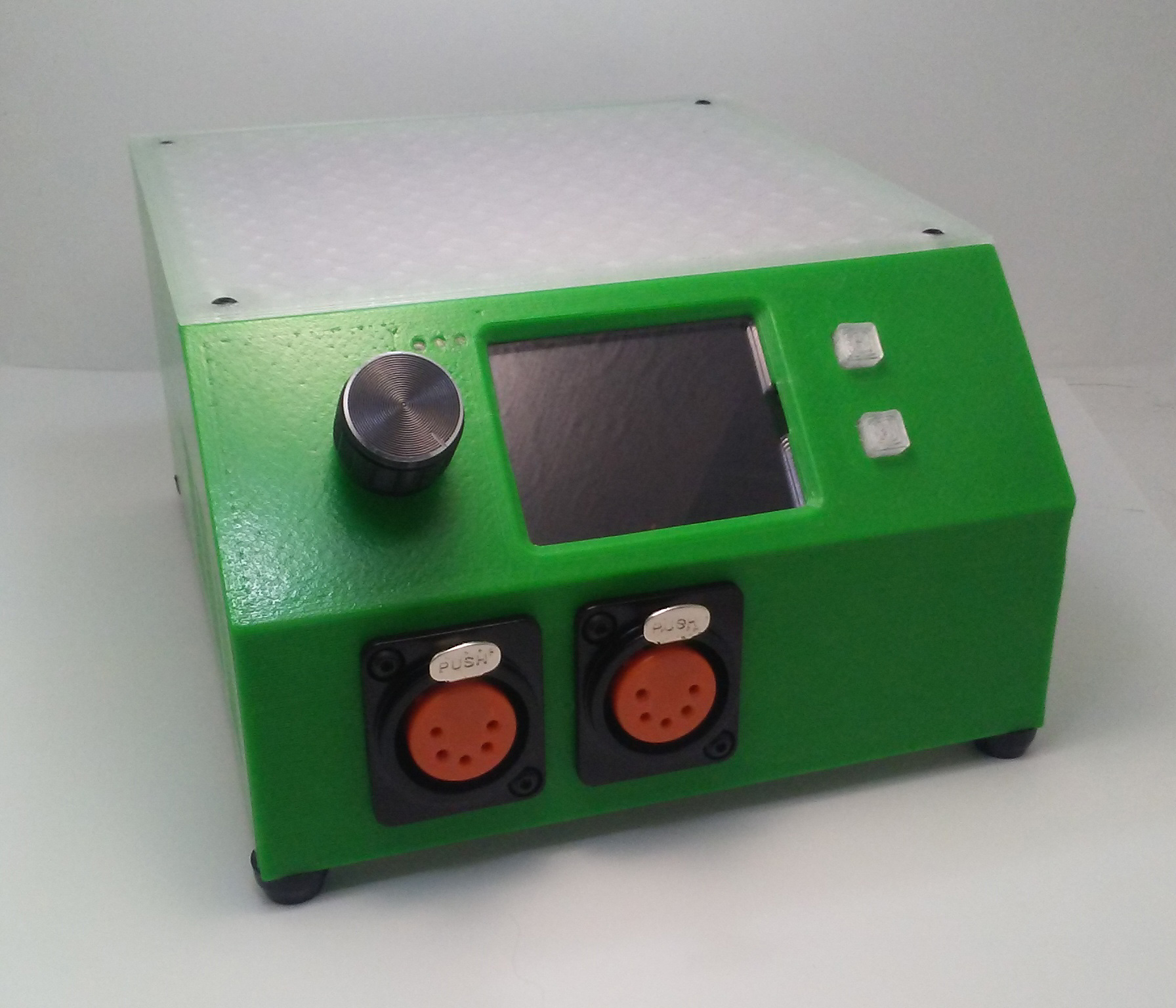

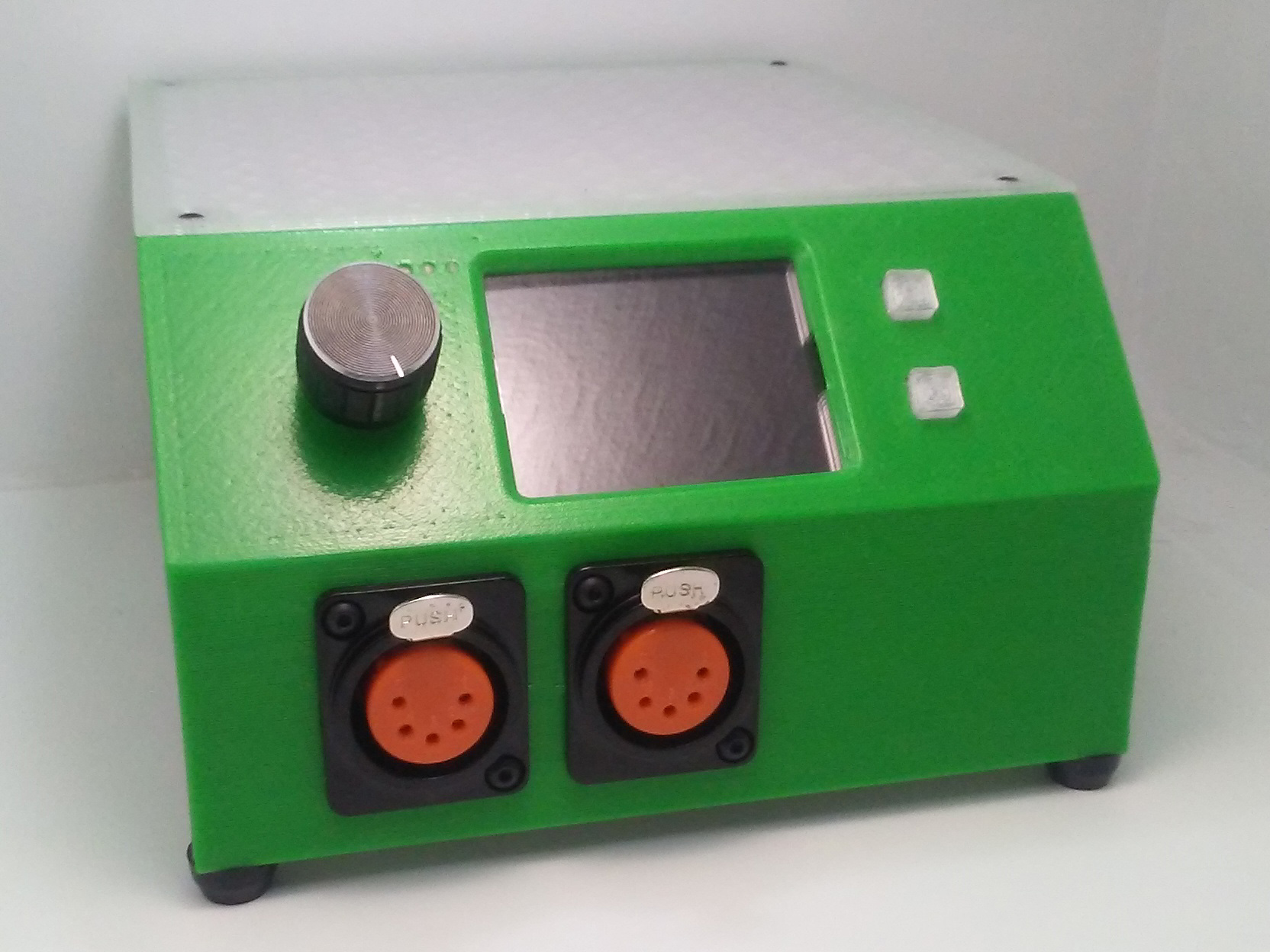

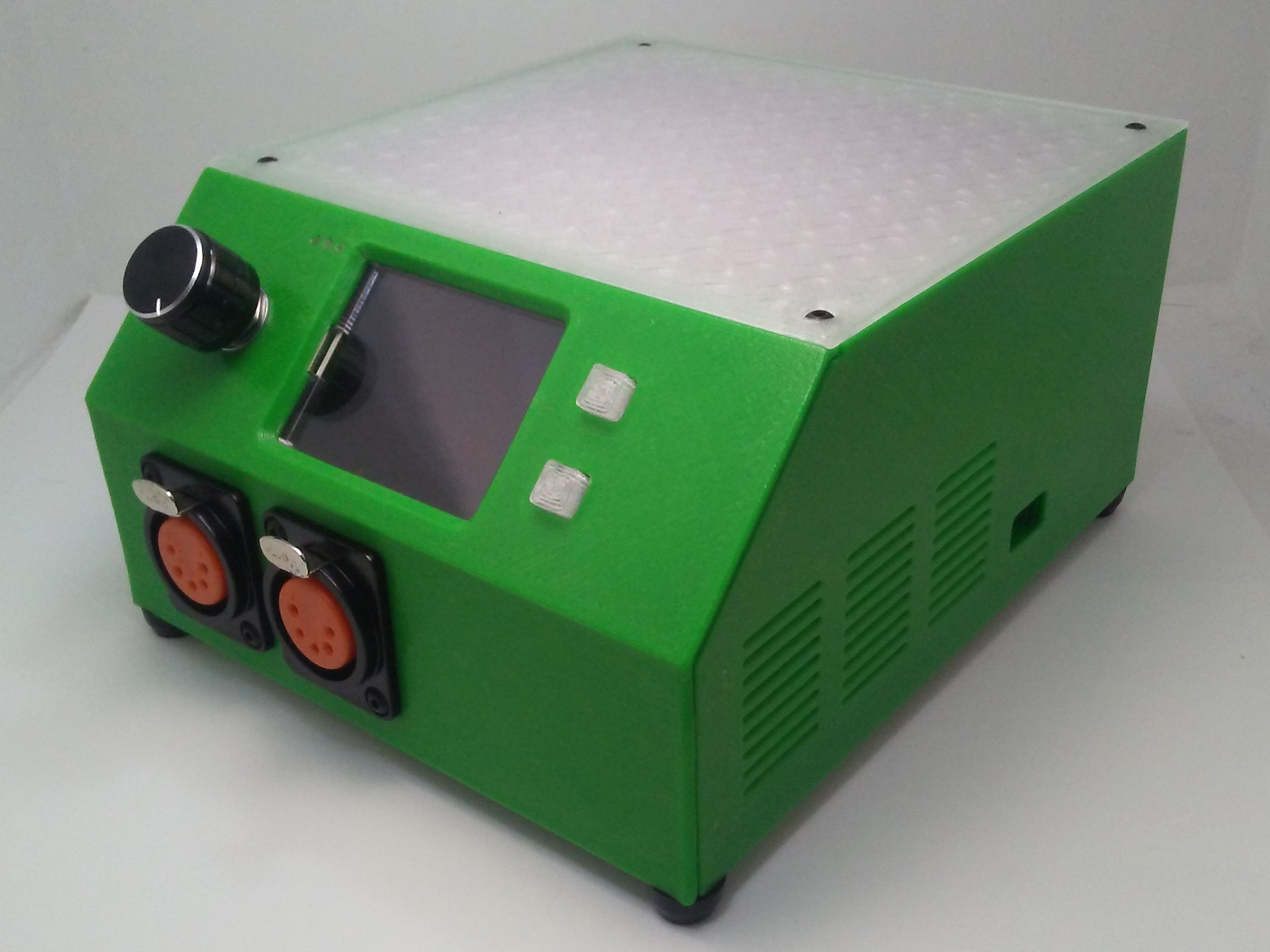

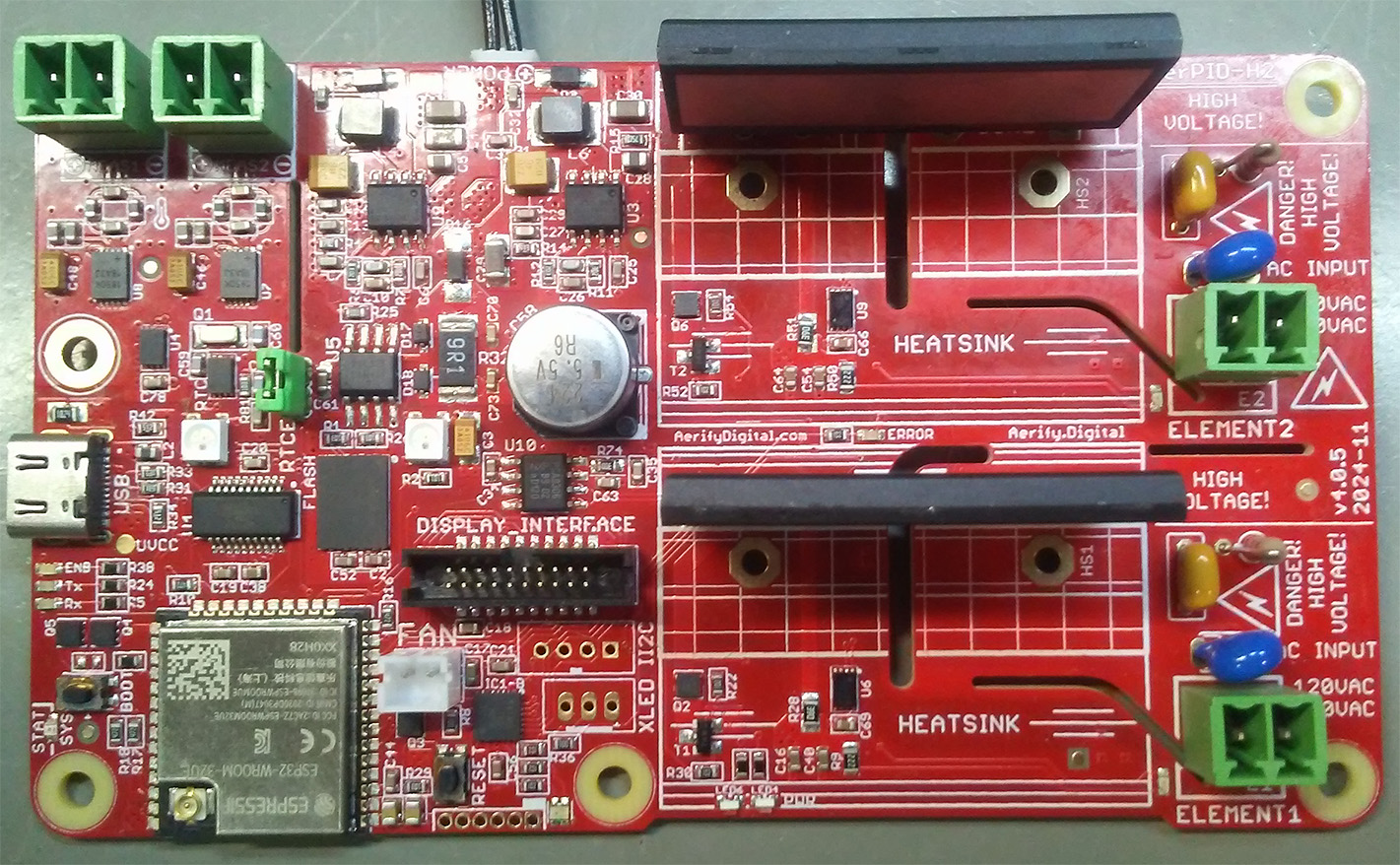

NOTE: Product images shown may be of an older or prior version of the design.  Latest designs features a screen protector/cover, as well as overall refinements to the tolerances of the enclosure assembly.  Additionally, the production PCB is red.
All product models ship with most recent version of the AerPID3 firmware (available on github), with additional software updates provided, at no cost.  Documentation for firmware upgrades is available on our docs site.

---

Device Features

• Temperature Control
  • Dual Thermocouple and SSR for control of Two heating elements
  • Dedicated PID Controller allows stable temperature management of heating element
• Power Handling
  • High Current switching ability using Solid State components (250v AC Max)
  • 10 Amp Solid State Relay for load Element (Includes Heatsink and Cooling for SSR)
  • Two Solid State Relay’s with cooling solution
• Connectivity
  • USB Interface for setup and usage (Data only) – Connectable to PC for software updates and configuration
  • Wifi Interface for remote configuration and control – Web application accessible via browser when device is network connected
• Display and Controls
  • 2″ LCD IPS Display Screen with full color and crisp picture (240 x 320 pixels, 2.0″ size)
  • Intuitive graphical user interface with controls from a rotary-knob, two buttons, and display for local control
  • Status LED’s on front interface
• Safety Features

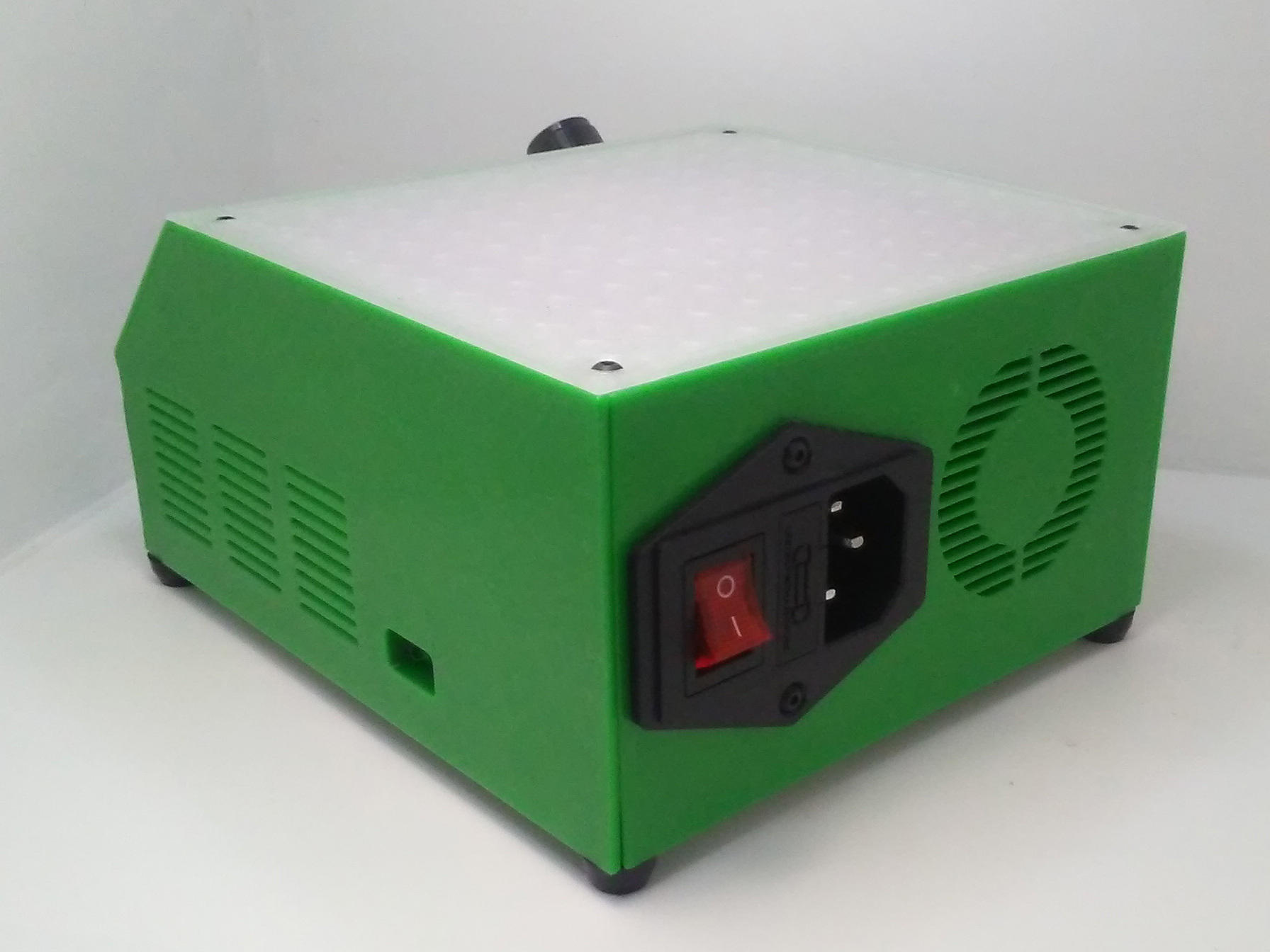

  • Fuse Protected (10-15 Amp) AC Plug on back of device with C14 Connection to C13 Power Cord
  • Secondary sub-system for monitoring of element controller faults
  • Heating Element and Thermocouple fault detection; Coil Protection Circuit
• Additional Features
  • • Controllable ambient internal lighting effects
    • Two 5-Pin Female XLR Sockets on Front – Supports common enail pinouts:
      • XLR Pinout:
        1. AC POWER +
        2. AC POWER
        3. TC +
        4. TC –
        5. GROUND
        6. SHIELD (Earth Ground)



Lifetime Limited Warranty*
Base from and built around original AerPID designs from 2015

Please keep in mind that we are small operation, every AerTiny is assembled by hand in the USA and may take some time to be finalized, tested, and shipped.

---

AVAILABILITY LIMITED

…

SHIPPING ACTIVE

---

*Limited availability lifetime limited warranty!
Warranty covers any defects or faults in workmanship when under normal use.
AerifyDigital will repair or replace, at no charge, products or parts of a device that proves defective because of improper materials or workmanship, when the device is under normal use and maintenance.  This warranty does not cover mishandling or cosmetic damage to the exterior case or screen.  However; Parts may be replaced at reduced or no charge upon warranty claim review.  This warranty may be voided if the device is found to be modified, in any way, without authorization from a member of our support team.  Please see our RMA form to file a RMA claim request.  You may contact us at support@aerifydigital.com for information or additional support inquiries.
